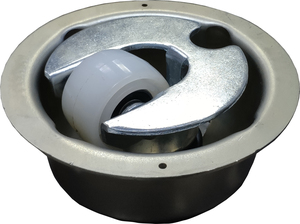

? MOBRA – cargo castor with toe-guard fixed in mounting bracket
? MOBRA-帶有固定在安裝支架上的機場輪
? The product consists of a mounting bracket that incorporates a standard toe-guarded cargo castor.The advantages for the fabricators and users of sorting decks, are numerous:
? 這個設計是由一個安裝支架組成，支架包含了一個標準的護腳機場輪，對于分揀平臺的制造商和用戶來說，其優點有很多：
? New sorting decks only require an upper deck.The lower deck, normally used for mounting the castors, becomes superfluous.
?新的分揀臺只需要一個上層。通常用于安裝腳輪的下層變得多余。
? Simplifies mounting.MOBRA doesn’t need bolts and nuts.
?簡化安裝。MOBRA不需要螺栓和螺母。
? No hassle of replacing damaged castors.Just take them out and push a new one into the standardized holes of the upper deck.
?無需更換損壞的腳輪。只需將其取出，并將新腳輪推入上層甲板的標準孔中。
? Procurement and logistics are simplified.This new patented MOBRA unit makes air cargo handling more cost efficient and reduces maintenance cost considerably.
?簡化了采購和物流。這一新的專利MOBRA裝置使空運更具成本效益，并大大降低了維護成本。
Each element of our caster has been carefully engineered and manufactured to stand up to the constant demands of the air cargo industry. It has advantages on high load capacity, shock and temperature resistance to ensure high performance even under continual handling of heavy cargo containers,or severe weather conditions. CargoMax is build to endure, and to lead the new standard of the air cargo caster.
我們的每一個腳輪都是通過精心設計和制造出來的,在惡劣的環境下,航天貨運腳輪正是不斷追求的,我們設計的航天貨運腳輪能夠在白天及晝夜變化的惡劣天氣中正常運轉,我們的產品具備了抗沖擊能力,高負載能力及溫差極大的變化,我們的產品將會成為航天貨物運輸的新標準
CARGO CASTER SPECIFICATION 航天貨運腳輪標準參數 |
|
ITEM 編號 | WHEEL 輪子 | TOP PLATE 安裝底板 | A | B | C | D | LOAD CAPACITY
(載重)kg |
mm | mm | mm | mm |
Standard cargo casters ( 標準貨物連接機腳輪 ) |
2820-01-NY | 58x34mm | -01- Diamond ( -01- 鉆石型-兩孔底板) |
| 96 | 25 | 58 | 250 |
2828-01-NY | 70x34mm |
| 102 | 25 | 70 | 250 |
2825-01-NY | 63x34mm |
| 102 | 25 | 63 | 250 |
2820-02-NY | 58x34mm | -02- Rectangular ( -02- 矩形-六孔底板) |
| 96 | 25 | 58 | 250 |
2828-02-NY | 70x34mm |
| 102 | 25 | 70 | 250 |
2825-02-NY | 63x34mm |
| 102 | 25 | 63 | 250 |
Standard cargo casters with attached top-guard ( 帶托盤防護的標準貨運腳輪 ) |
2820-01-NY-T | 58x34mm | -01- Diamond ( -01- 鉆石型-兩孔底板) | 82 | 96 | 25 | 58 | 250 |
2528-01-NY-T | 70x34mm | 82 | 102 | 25 | 70 | 250 |
2825-01-NY-T | 63x34mm | 85 | 102 | 25 | 63 | 250 |
2820-02-NY-T | 58x34mm | -02- Rectangular ( -02- 矩形-六孔底板) | 82 | 96 | 25 | 58 | 250 |
2828-02-NY-T | 70x34mm | 82 | 102 | 25 | 70 | 250 |
2825-02-NY-T | 63x34mm | 85 | 102 | 25 | 63 | 250 |
Mounting bracket needs a hole in the sorting deck of at least 146.5 mm, maximum 147.5 mm.
安裝支架至少需要146.5mm.最大147.5mm的甲板孔
Temperature range from - 30oC to + 80oC. (-20oF to +180oF)
適應使用溫度,: - 30oC to + 80oC. (-20oF to +180oF)
For temperatures below - 30oC (-20oF) please contact us for professional solutions
如果超過低溫: - 30oC (-20oF) 請與我們聯系,我們將會提供解決方案
Overall dimensions are compatible with most current types of cargo castors
整體腳輪尺寸基本可以與目前大多數貨物運輸機共用
